Woes of SharePoint 2010 Host Headers and Alternate Access Mapping

I put myself in a bit of a muddle earlier on today while trying to create an alternate

SharePoint URL to be used on a client’s VPN SSL application. Basically, a web application and

site collection had already existed – which had already been configured to use port 80. A host

header was created in DNS and then the web application was successfully created via

Central Administration | Application Management | Manage Web Applications – New.

Ensure that the host header fields are populated with the url intranet.sharepointlover.local for
the Intranet site and also ensure that the public url is also entered with the url as well.

A site collection was then created afterwards using the My Sites template (could be anything,
but just using this as an example as below and the site successfully displayed without having to
enter port 80 in the URL.

Next step was to create the Alternative Access Mapping for the site, so using via
Central Administration | Application Management | Web Applications – Configure Alternate
access mappings  | Alternate Access Mapping Collection (and then changed it to the original web
application created), and then click on Edit Public URLs so as to enter the alternate url

The URL that was to be used for external access was is I entered this
into the Extranet field as (In the real world, we would be using https and
port 443 for SSL connections, but I am just using this it as it is to demonstrate the point here).

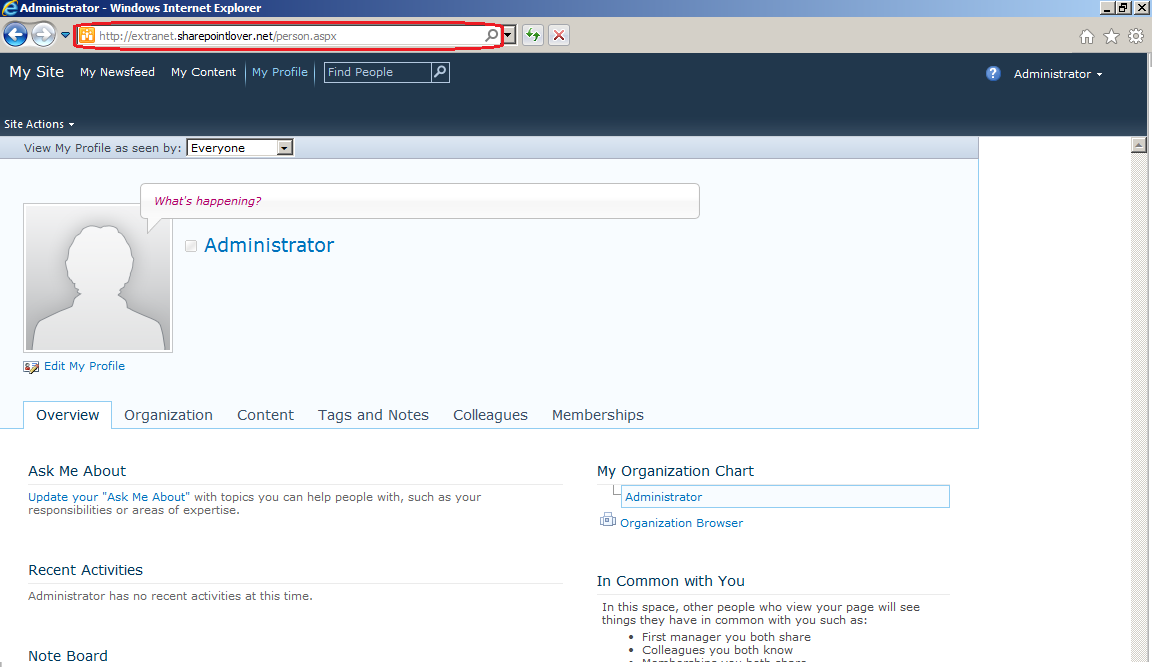

Click on Save and the URL should be created as a public URL. Launching the URL
will then bring the user back to the same site.

So this proves this functionality. However, there are a couple of issues here . Invariably, what has been
created here are host named web applications with a single host name. Host-named site collections have
a single URL and they do not support alternate access mappings and are always considered to be in the Default
Microsoft says “If you need to support site collections responding to multiple host-name URLs, consider
using path-based site collections with alternate access mappings instead of host-named site collections”.
This could cause problems as in my situation; a web application had already been created. To get around
this I would recommend the following:- Extend the web application and when extending it, use the original
host header of the originating web application, and then in the URL field, insert the URL to be created as an
alternate access mapped url. Lets use an example where an SSL site needed to be made of via the Internet,
so the Url is https://internet.sharepoint.local . Select the web application and then click on the authentication
provider button to ‘look’ at the existing authentication providers”. This would have been set as default i.e.
the original authentication provider created when the web application was created. Close the Authentication
providers focus.
Extend the web application by clicking on “the Extended” button.

You will now be brought to the extend web application to another IIS web site area. Here, you then configure
the host header and the right url for the Internet zone. Since we are also configuring a secure site, then change
the port to use 443 as well. In the host header field, ensure that this is not populated.
In the security configuration setting, ensure that “Use secure sockets layer” is selected.
Next, scroll down to the public url section and enter the url, and re-enter the url as
https://internet.sharepoint.local and select the zone as Internet.
You would then be able to use the extended site as an Internet site. Please note though, you would not able to
access the site until a SSL certificate has been applied and this will be covered in a later story.
